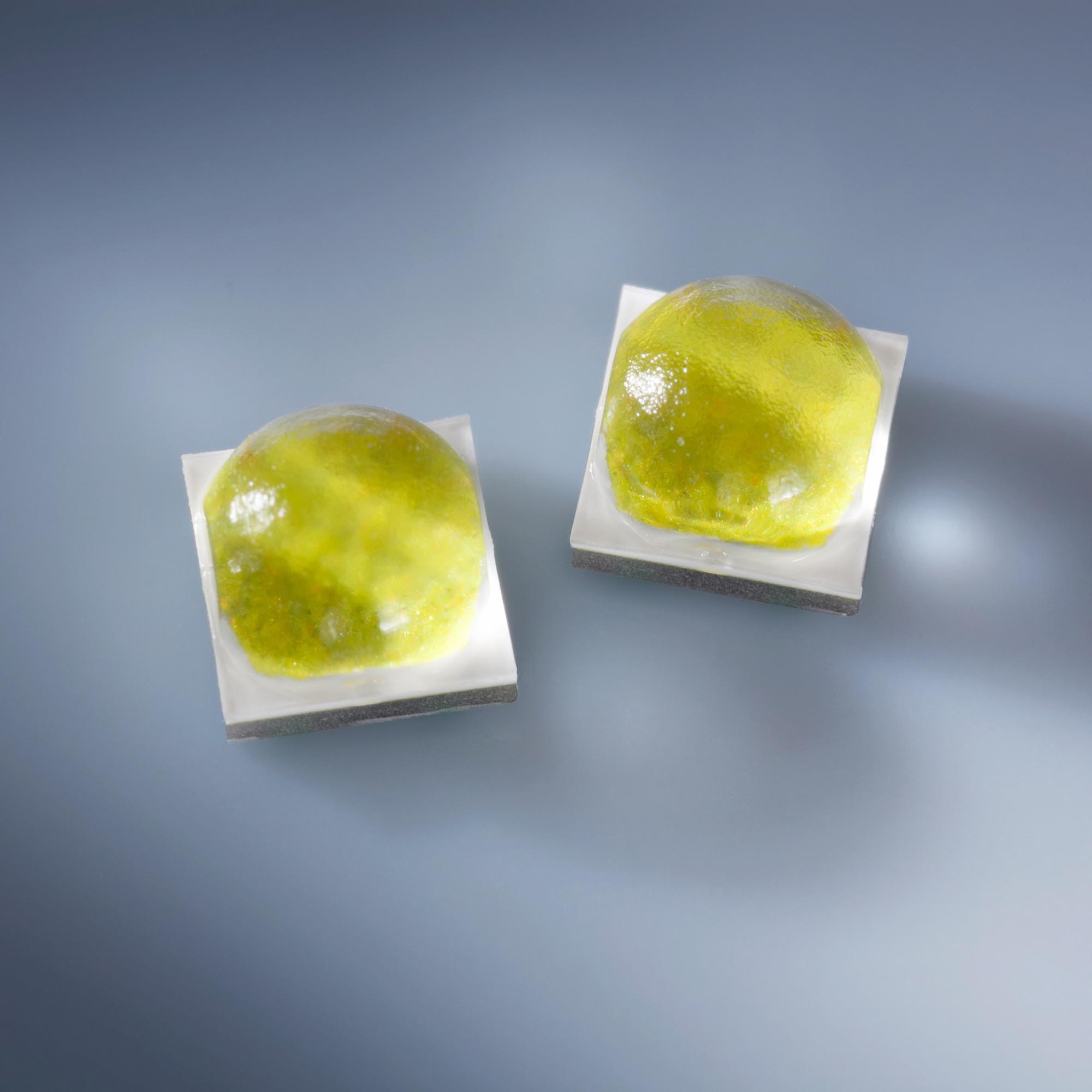

Cree XHP35 LED cold white 6200K 3.96-60W 717lm Star PCB

Cree XHP35 LED cold white 6200K 3.96-60W 717lm Star PCB

Cree XHP35 LED cold white 6200K 3.96-60W 717lm Star PCB
Cree XHP35 LED cold white 6200K 3.96-60W 717lm Star PCB Cree XHP35 LED cold white 6200K 3.96-60W 717lm Star PCB

Cree XHP35 LED cold white 6200K 3.96-60W 717lm Star PCB

$9.73
Stock >100 pcs
SKU
68488
Blog Posts (11)

The Cree XHP35 LED lights with an alert, daylight white light with 6500K, that we recommended for workplaces with some specific tasks where a boost in concentration, performance is desired. Such places could be laboratories, factories and hospitals. Another important application is agriculture particularly indoor farming.

With the luminous flux of up to 717 lm one LED module is great for task lighting, spot lighting or portable lighting. Multiple LED modules can be used for linear lighting fixtures such as high bay lights, flood lights, street lights.

Product description

With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

The Cree XHP35 from the XLamp series combines the power of Cree Extreme High Power LEDs with the XP footprint. With the new XLamp XHP35, Cree achieves 50 per cent more luminous efficacy than its previously most powerful Single Die High Power LED. Therefore, it creates a new standard for the 3.5x3.5mm footprints. This improvement is based on the SC5 Technology Platform from Cree. The leading silicon carbide technology provides significant improvements for the chip architecture as well as an advanced system for light conversion for the best thermal and optical performance. Features

  • Maximum load up to 1050mA
  • SC5 platform
  • Monolithic 12V Power Die
  • Binned at 85°
  • Low thermal resistance: 1.8°C/W
  • Reflow-capable
Application
  • High bay light fixtures
  • Outdoor applications
  • High Bay
  • Street and car park lighting
Technical Data
SKU 68488
Weight brut (g) 1.000000
LED SIZE (mm) 3.45x3.45
LED Family Cree XPH
LED Application Spotlight, Downlight, High Bay, Par Lamp, Street Light, Flood Light
LED Installation Package Star PCB
Color Cold White
Color Temperature 6500K
Viewing Angle 125°
Luminous Flux Typ (lm) 717
Forward Current Typ. 350ma
Forward Voltage Typ (V) 11.3
Power (W) 3.96
Product lifetime (h) 60000
Efficacy (lm per W) 182
Manufacturer Product Code 68488
Brand Cree (USA)
Availability beyond shown stock: NO
