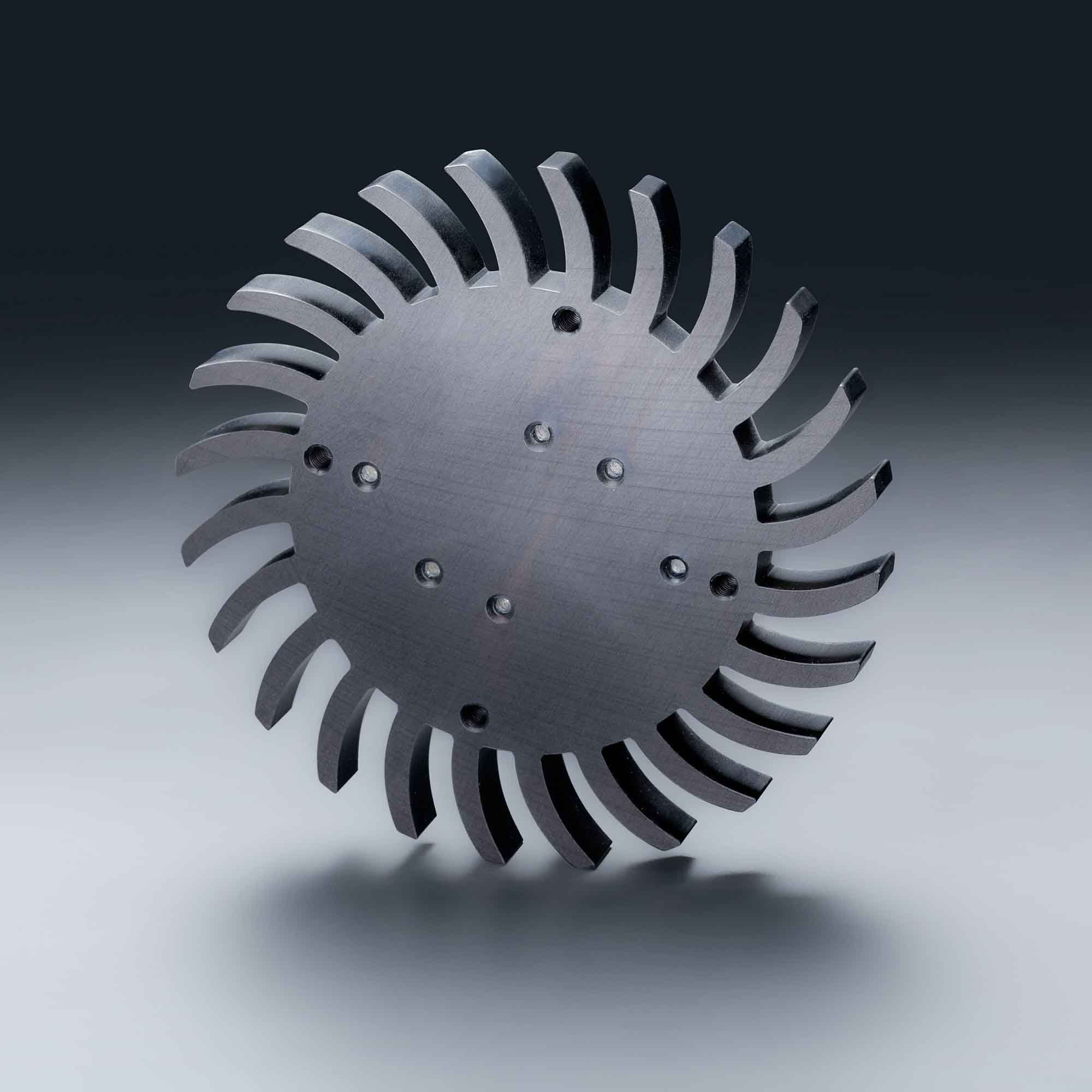

Heatsink round 10.5cm for SmartArray Q3-Q16, L3, L6 or LED < 2000lm

Heatsink round 10.5cm for SmartArray Q3-Q16, L3, L6 or LED < 2000lm

Heatsink round 10.5cm for SmartArray Q3-Q16, L3, L6 or LED < 2000lm
Heatsink round 10.5cm for SmartArray Q3-Q16, L3, L6 or LED < 2000lm

Heatsink round 10.5cm for SmartArray Q3-Q16, L3, L6 or LED < 2000lm

$31.81
Stock >10 pcs
SKU
59997

Heatsink for  SmartArray Q3-Q16, L3, L6 or LED up to 2000lm

The heat sink is mechanically prepared for the modules listed below and fitted with mounting holes.

When using several modules with full power supply on a heat sink, it is sometimes not possible to cool the modules sufficiently. Further modules can also be used with this heat sink, but must be glued or mechanically processed.

Note: In order to ensure proper cooling, the heat sink be in closed housings.

Features

  • Dimensions: 105x10mm
  • Thermal resistance: 2.0K/W

Heat sink is suitable for the following modules:

SmartArray Q3 (max. 1 Modul):

    • 53651
    • 53652

SmartArray Q6 (max. 1 Modul):

    • 53656
    • 53657

SmartArray Q9 (max. 1 Modul):

    • 53661
    • 53662

SmartArray Q12 (max. 1 Modul):

    • 53666
    • 53667

SmartArray Q16 (max. 1 Modul):

    • 53671
    • 53672

SmartArray 24V (max. 1 Modul):

    • 53683

SmartArray 24V TW (max. 1 Modul):

    • 53684

SmartArray TW (max. 1 Modul):

      5368653686

SmartArray L3 (max. 1 Modul):

    • 53611

SmartArray L6 (max. 1 Modul):

    • 53783
    • 53784
    • 53785
    • 5378653786
    • 53787
    • 53788
    • 53781
    • 53782
    • 53616
    • 53617
    • 53791
    • 53792

SmartArray L12 (max. 1 Modul):

    • 53761
    • 53762
    • 53771
    • 53772

Luxeon 20x20 (max. 5 Modul):

  • 64125
  • 64126
  • 64072
Technical Data
SKU 59997
Manufacturer Fischer Elektronik GmbH
Manufacturer Product Code SK584 10 SA-SL
Availability beyond shown stock: YES
