Constant Voltage Power Supply Mean Well NPF-60D-12 IP67 230V to 12V 5A 60W
$39.31
Low Stock, only 1 pcs.
SKU
95308

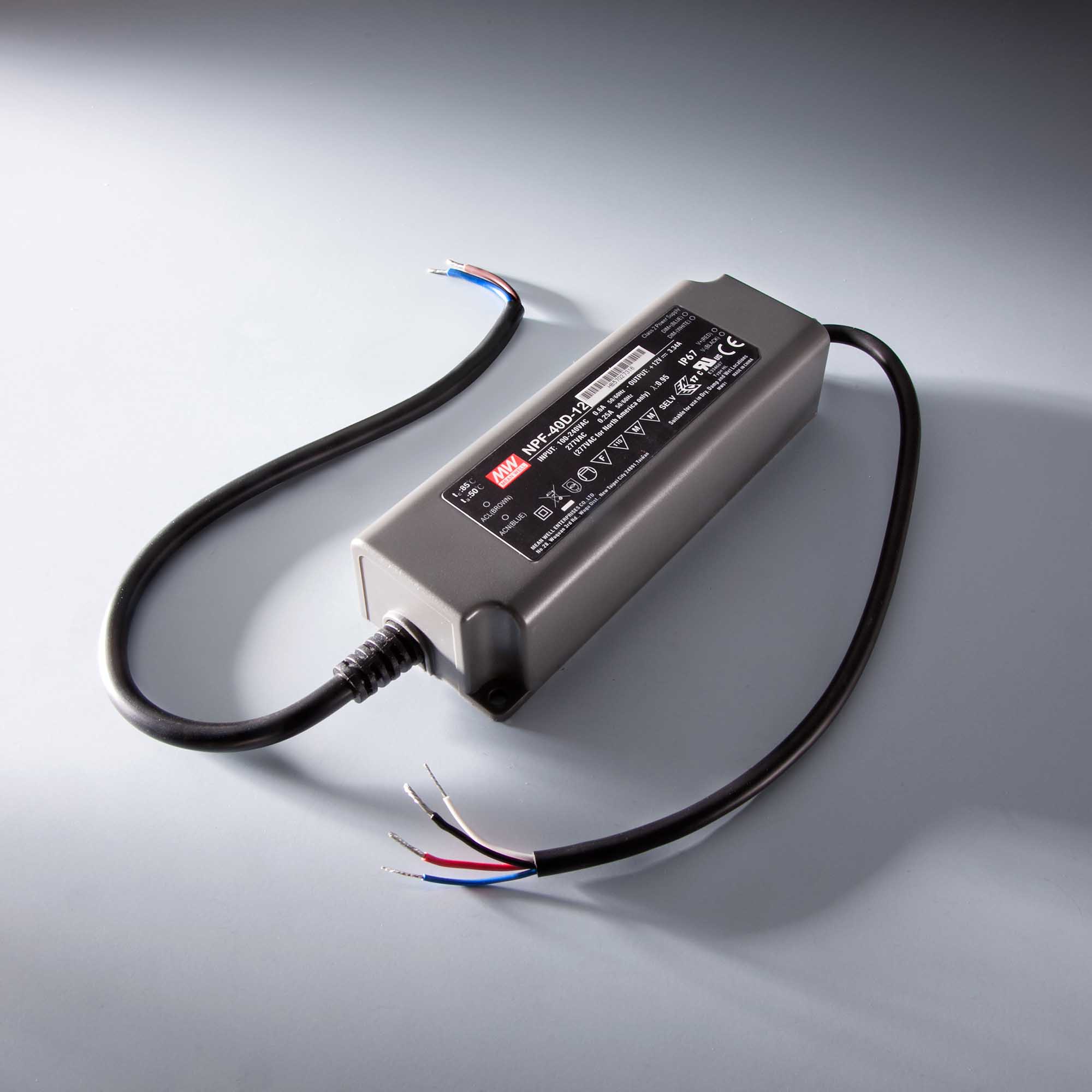

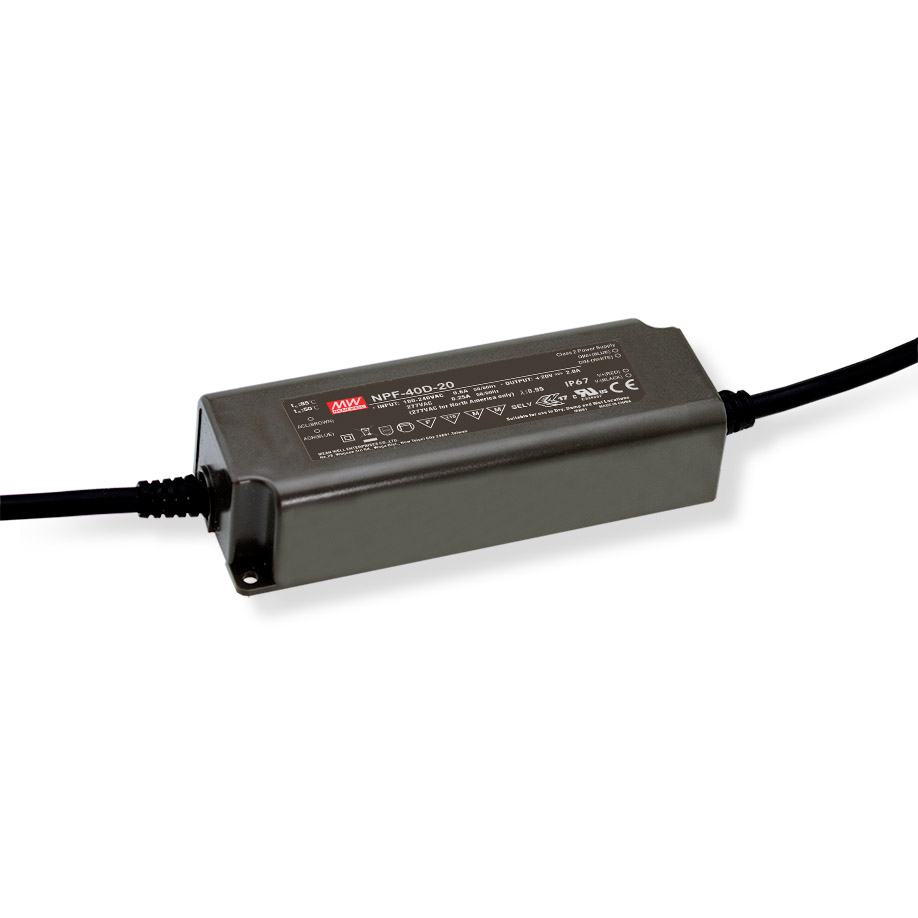

Constant Voltage Power Supply Mean Well NPF-60D-12 IP67 230V to 12V 5A 60W
Mean Well constant voltage LED transformer for use with LED modules and strips that require 12VDC voltage. The components can be connected in parallel so the total power of the chain is max 5000mA or 60 W. Compact size, dimensions(mm): 150*53*35mm .Features:
- Fully encapsulated with IP67 level
- Protections: Short circuit/ Over Current/ Over voltage/ Over temperature
- Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off )
- 90~305VAC input, built-in active PFC function
- High efficiency up to 90.5%
- Cooling by free air convection
- Built-in active PFC function
- Fully isolated plastic case
- Class II power unit, no FG
- Suitable for dry, damp, wet location
- No load power consumption <0.15W
- 5 years warranty
| SKU | 95308 |
|---|---|
| Weight brut (g) | 490.000000 |
| Brand | Mean Well |
| Manufacturer Product Code | NPF-60D-12 |
| Output Current (Range) | 5000 |
| Transformer Output Voltage | 12V |
| Power (W) | 60 |
| IP Protection | IP67 |
| Dimmable | Dimmable |
| Dimensions | 150x53x35mm |
| Dimensions: Length (cm) | 15 |
| Dimensions: Width (mm) | 53 |
| Dimensions: Height (mm) | 35 |
| Product Family | NPF |
| Availability beyond shown stock: | YES |
