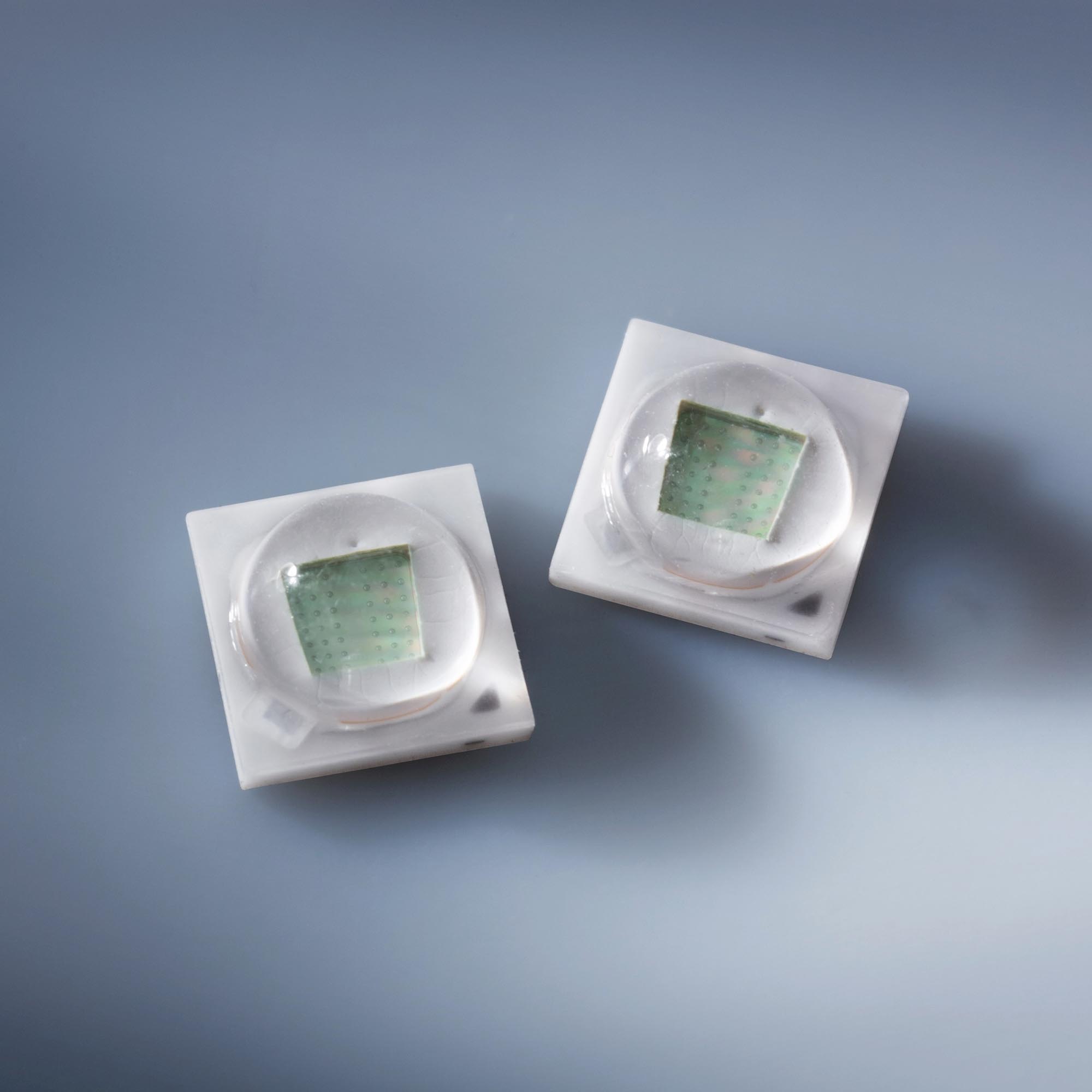

Nichia NCSG219B-V1 139lm Green Square 1x1 PCB

Nichia NCSG219B-V1 139lm Green Square 1x1 PCB

Nichia NCSG219B-V1 139lm Green Square 1x1 PCB
Nichia NCSG219B-V1 139lm Green Square 1x1 PCB Nichia NCSG219B-V1 139lm Green Square 1x1 PCB

Nichia NCSG219B-V1 139lm Green Square 1x1 PCB

$1.39
Stock >100 pcs
SKU
65899

With our PCB LED modules you can easily harness the power of the high performance Nichia LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

With 24% Nichia is the largest LED manufacturer in the world and inventor of the blue (and so also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.

Durability, brightness and homogeneity are among the major strengths of the Nichia brand. Further, the fine selection allows a large added value for professional processing.

Features
  • 219 Package
  • Single Chip LED
  • Ceramic cage
  • Measures (LxWxH): 3,5x3,5x2,0mm
Application range
  • Special Effect Lighting
  • Signage Lighting
  • Traffic Lighting
Technical Data
SKU 65899
Weight brut (g) 1.000000
LED SIZE (mm) 3.5x3.5
LED Family Nichia 19B Series
LED Installation Package 1x1 cm PCB
Color Green
Viewing Angle 145°
Luminous Flux Typ (lm) 139
Forward Current Typ. 350ma
Forward Voltage Typ (V) 3.38
Power (W) 1.19
Product lifetime (h) 60000
Efficacy (lm per W) 117
Manufacturer Product Code NCSG219BT-V1
Brand Nichia (Japan)
Availability beyond shown stock: YES
Dimensions: Length (cm) 0.35
Dimensions: Width (mm) 0.20
Dimensions: Height (mm) 0.35
