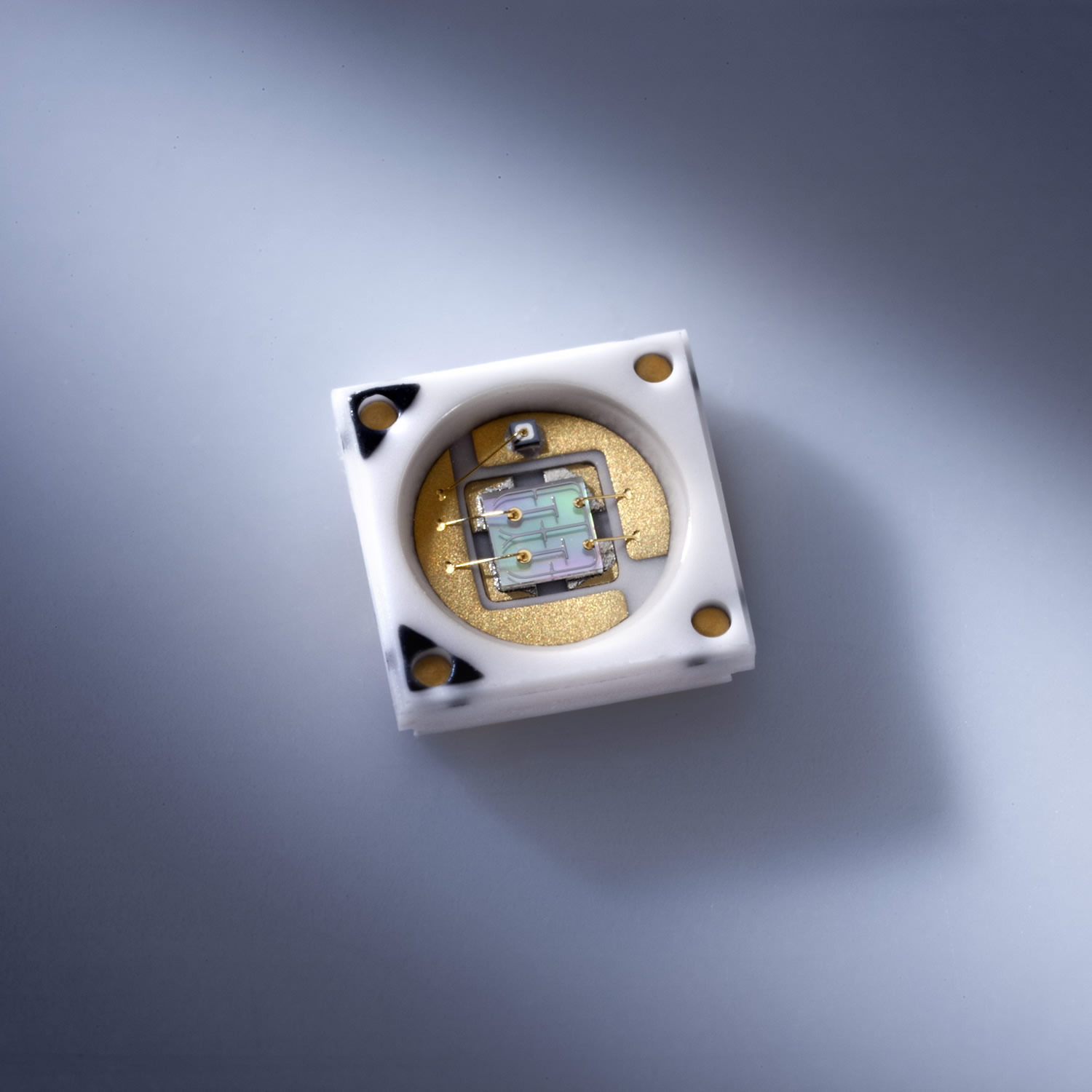

Nichia SMD LED UV NCSU275 365nm 370mW at 500mA 1.85W 1x1cm Square PCB

Nichia SMD LED UV NCSU275 365nm 370mW at 500mA 1.85W 1x1cm Square PCB

Nichia SMD LED UV NCSU275 365nm 370mW at 500mA 1.85W 1x1cm Square PCB
Nichia SMD LED UV NCSU275 365nm 370mW at 500mA 1.85W 1x1cm Square PCB Nichia SMD LED UV NCSU275 365nm 370mW at 500mA 1.85W 1x1cm Square PCB

Nichia SMD LED UV NCSU275 365nm 370mW at 500mA 1.85W 1x1cm Square PCB

$9.46
Stock >10 pcs
SKU
14331.03
Blog Posts (2)

With our PCB LED modules you can easily harness the power of the high performance Nichia LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

Nichia is one of the largest LED manufacturers in the world and inventor of the blue (and thus also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.

Durability, brightness and homogeneity are among the major strengths of the Nichia brand. Furthermore, the fine selection allows greater added value for professional processing.

The Nichia SMD LEDs in the range UV light can be used for a wide range of applications. The NCSU 275 is available with three different wave lengths. At 405nm wavelength the Nichia LED reaches a power of 370mW.This UV LED is only suitable for use in industrial applications.


Warning:
invisible light, the LED constitutes a danger for the eye even at short-term radiation. Please consult our employees for advice on this product before ordering!

Features
  • SMD LED UV
  • 275 Package
  • wavelenghts: 365nm, 385nm, 395nm and 405nm
  • 370mW
  • Risk group 3 (EN 62471)
  • Dimensions (LxWxH): 3.5x3.5x0.88mm
Application areas
  • medical engineering
  • test and sorting machines
  • hardening
  • cameras with UV light
Warning Actinic UV danger for eyes and skin

Ultra violet radiation in the wavelength range of 200-400nm may cause inflammation of the cornea as well as a UV erythema (sunburn) of the skin. The biological effectiveness of the UV radiation varies in the stated wavelength range and is described with the spectral response function (weighting scale) SUV.

UV-A danger for the eyes

Ultra violet radiation in the wavelength range of 315-400nm (UV-A) is for the most part absorbed by the eye lens and may cause UV cataracts (clouding of the lens of the eye).

Technical Data
SKU 14331.03
Weight brut (g) 1.000000
LED SIZE (mm) 3.5x3.5
LED Family Nichia UV (New!)
LED Application Lithography, Curing
LED Installation Package 1x1 cm PCB
Color UVA Ultraviolet
Viewing Angle 120°
Forward Current Typ. 500ma
Forward Voltage Typ (V) 3.65
Power (W) 1.83
Product lifetime (h) 60000
Wavelenght 365
Manufacturer Product Code NCSU275 Ua365/Pz-P1/Lk1-M2
Brand Nichia (Japan)
Availability beyond shown stock: YES
