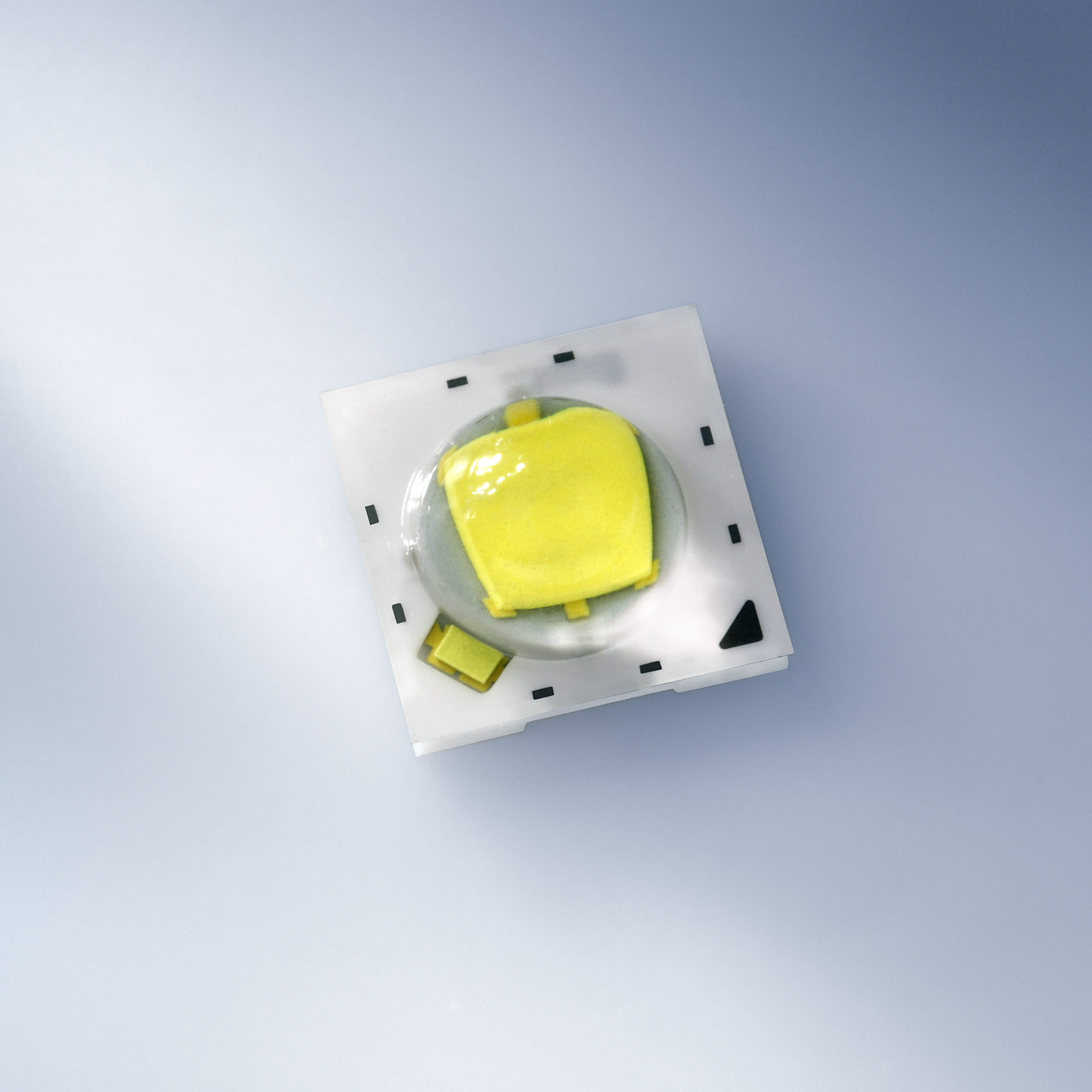

Nichia NVSW219C LED 586lm at 1800mA white 5000K PCB (Star)

Nichia NVSW219C LED 586lm at 1800mA white 5000K PCB (Star)

Nichia NVSW219C LED 586lm at 1800mA white 5000K PCB (Star)
Nichia NVSW219C LED 586lm at 1800mA white 5000K PCB (Star) Nichia NVSW219C LED 586lm at 1800mA white 5000K PCB (Star) Nichia NVSW219C LED 586lm at 1800mA white 5000K PCB (Star)

Nichia NVSW219C LED 586lm at 1800mA white 5000K PCB (Star)

$2.19
Stock >100 pcs
SKU
65877

The Nichia 219 LED lights with a vibrant, cool white light with 5000K, that will bring high concentration and visual performance for most tasks and create the safest working environment. We recommend white 5000K light for warehouses, hospitals, classrooms and parking garages

With the luminous flux of up to 586 lm one LED module is great for task lighting, spot lighting or portable lighting. Multiple LED modules can be used for linear lighting fixtures such as high bay lights, flood lights, street lights.

Product description

With our PCB LED modules you can easily harness the power of the high performance Nichia LED for your application, without the need for reflow soldering or a sophisticated soldering station. The PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

The innovative research department of Nichia has really surpassed itself with the new 219C Series. In comparison with its predecessor, the 219B-V1 series, considerable improvements have been achieved in regard to intensity and efficiency. The new 219C Series is 9% brighter and more efficient than the 219B-V1 Series.

A new optimum value of 1800mA means the 219C Series markedly outperforms the 219B-V1 Series. The 219C Series further differs from the 219B-V1 Series, in that it is available with MacAdam binning. MacAdam binning guarantees a high level of color homogeneity and a uniform and comfortable light.

The LED can be applied very flexibly, due to its electrically isolated thermal pad.

Features
  • 219C V Package
  • 2W power LED
  • Single Chip
  • Ceramic Housing

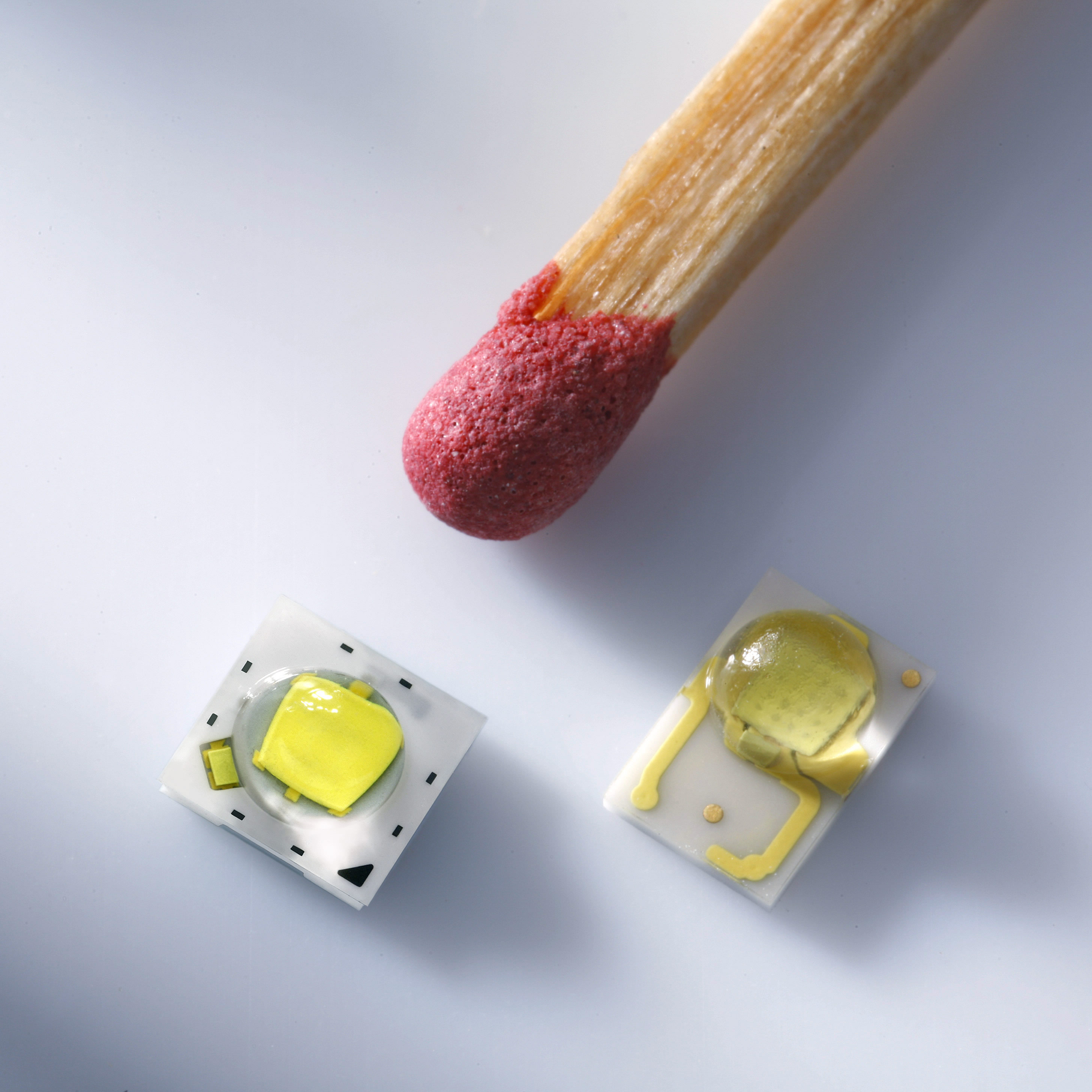

  • Dimensions (LxWxH): 3.5 x 3.5 x 2.0 mm
Areas of application
  • Street lighting
  • Panel lighting
  • Lamp and spot lighting
  • Down lights
Technical Data
SKU 65877
Weight brut (kg or g) 0.001000
LED SIZE (mm) 3.5x3.5
LED Family Nichia 19C Series
LED Installation Package Star PCB
Color Neutral White
Color Temperature 5000K
Color Rendering Index 83
Viewing Angle 130°
Luminous Flux Typ (lm) 144
Forward Current Typ. 350ma
Forward Voltage Typ. 2.76
Power (W) 0.97
Forward Current Max 1800
Luminous Flux Max. 586
Power Consumption Max. 5.9
Luminous Efficacy (lm per W) 149
Manufacturer Product Code NVSW219CT sm503/D280-300/L2-M1/R8000
Manufacturer Nichia (Japan)
Availability beyond shown stock: YES
Dimensions: Length (cm) 0.35
Dimensions: Width (mm) 0.20
Dimensions: Height (mm) 0.35
