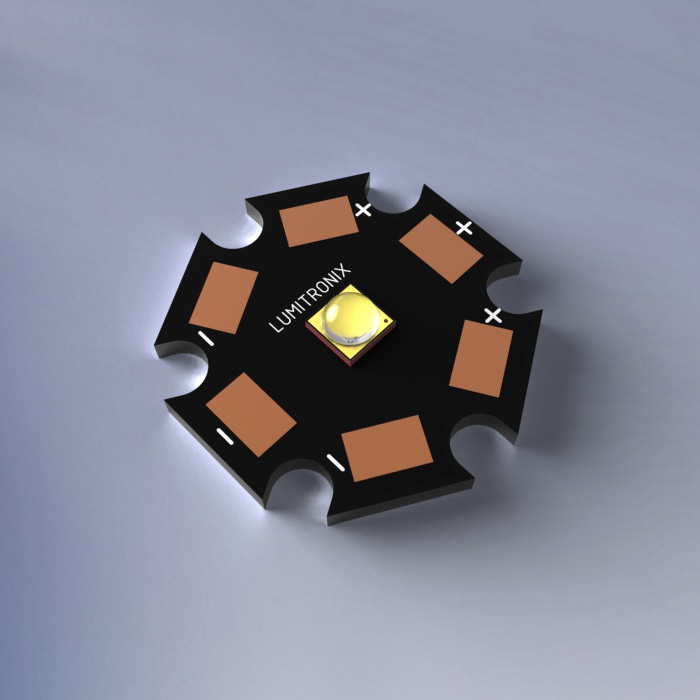

Cree XP-G3 S5 LED white 6000K Star PCB 795lm at 2000mA

Cree XP-G3 S5 LED white 6000K Star PCB 795lm at 2000mA

Cree XP-G3 S5 LED white 6000K Star PCB 795lm at 2000mA
Cree XP-G3 S5 LED white 6000K Star PCB 795lm at 2000mA Cree XP-G3 S5 LED white 6000K Star PCB 795lm at 2000mA

Cree XP-G3 S5 LED white 6000K Star PCB 795lm at 2000mA

Overall Rating:
99 % of 100
$2.80
Stock >500 pcs
SKU
68500

The Cree XP-G LED lights with an alert, daylight white light with 6000K, that we recommended for workplaces with some specific tasks where a boost in concentration, performance is desired. Such places could be laboratories, factories and hospitals. Another important application is agriculture particularly indoor farming.

With the luminous flux of up to 795 lm one LED module is great for task lighting, spot lighting or portable lighting. Multiple LED modules can be used for linear lighting fixtures such as high bay lights, flood lights, street lights.

Product description

With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

Cree's XLamp XP-G3 LEDs are the most efficient and reliable LEDs on the XP-G platform. These LEDs meet the stringent requirements of the DLC classification in terms of efficiency and maintaining lumen output. The XP-G3 features SC5 technology for even greater reliability at high operating temperatures. The LEDs are suitable for a variety of applications, from directional lighting, high luminous efficacy applications, indoor and outdoor lighting, to portable and retrofit lighting applications. The XP-G3 are housed in the proven 3.45mm x 3.45mm housing, allowing lighting manufacturers a simplified design process.

Features

  • SC5 platform
  • 85°C Binning
  • maximum operating current 2000mA
  • Low thermal resistance: 3°C/W
  • Forward beam angle: 125°
  • reflowable
  • Long-lasting

Application

  • Directional lighting
  • Retrofit
  • interior and exterior lighting
  • High luminous efficacy lighting

Application areas

  • Retrofit lamps
  • Lights
  • Flashlights
Technical Data
SKU 68500
Weight brut (kg or g) 0.000000
LED SIZE (mm) 3.45x3.45
LED Family Cree XP-G3
LED Application Spotlight, Downlight, High Bay, Par Lamp, Street Light, Flood Light
LED Installation Package 1x1 cm PCB
Color Cold White
Color Temperature 6000K
Viewing Angle 125°
Luminous Flux Typ (lm) 172
Forward Current Typ. 350ma
Forward Voltage Typ. 2.73
Power (W) 0.96
Forward Current Max 2000
Luminous Flux Max. 795
Power Consumption Max. 6.2
Product lifetime (h) 60000
Luminous Efficacy (lm per W) 180
Manufacturer Product Code 68500
Manufacturer Cree (USA)
Availability beyond shown stock: YES
