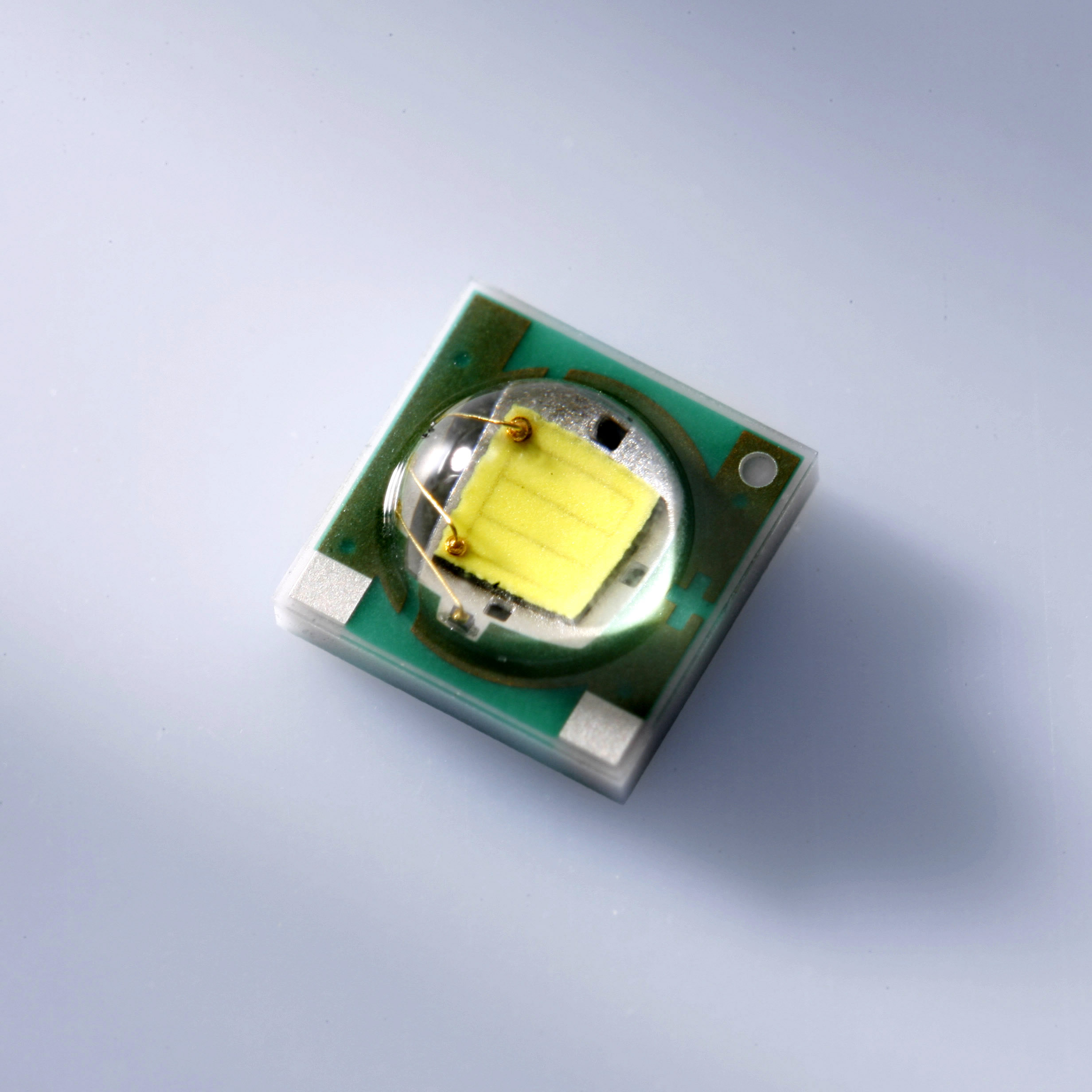

Cree XP-G2 R2 LED CRI90 warmwhite LED 425lm 3W XPGBWT-U1-0000-00AE7 1x1cm SQUARE PCB

Cree XP-G2 R2 LED CRI90 warmwhite LED 425lm 3W XPGBWT-U1-0000-00AE7 1x1cm SQUARE PCB

Cree XP-G2 R2 LED CRI90 warmwhite LED 425lm 3W XPGBWT-U1-0000-00AE7 1x1cm SQUARE PCB
Cree XP-G2 R2 LED CRI90 warmwhite LED 425lm 3W XPGBWT-U1-0000-00AE7 1x1cm SQUARE PCB Cree XP-G2 R2 LED CRI90 warmwhite LED 425lm 3W XPGBWT-U1-0000-00AE7 1x1cm SQUARE PCB

Cree XP-G2 R2 LED CRI90 warmwhite LED 425lm 3W XPGBWT-U1-0000-00AE7 1x1cm SQUARE PCB

Overall Rating:
100 % of 100
$3.59
Stock >500 pcs
SKU
68438

The Cree XP-G LED lights with a calming warm white light with 3000K, that we recommend being used in kitchens and bathrooms. Compared with 2700K, warm light at 3000K creates a relaxing ambiance but with a bit more clarity in the environment, good for residential areas where typically you are completing tasks. For business applications the warm glow creates a cozy, home like atmosphere in guest rooms, cafes and clothing stores.

With the luminous flux of up to 213 lm one LED is great for spot lighting or portable lighting. Multiple LED modules can be used for linear lighting fixtures such as flood lights, street lights or architectural wall washers.

Product description

With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

New Version of the Popular XP-G Series by Cree. The new XP-G2 series by Cree convinces by 20% more efficiency and up to 57% less system costs. The new series is optically compatible with the original XP-G series and thus can easily be installed into existing designs. The centrally arranged chip as well as the square form guarantee homogeneous heat dissipation and easy handling. Thanks to its small size, high luminous power and the very good efficiency it is perfectly suited as a light source for applications such as LED Retrofit lamps and spots.

Features
  • High CRI Variante
  • loadable up to 1500mA
  • SC³ platform
  • 85° C binning
  • improved efficiency
  • capable of reflow / can be equipped with SMD
  • durable
  • outstanding price / lumen ratio
  • Dimensions (LxW): 3.45x3.45mm
Application
  • interior and exterior illumination
Application areas
  • LED Retrofit lamps and spots
  • LED luminaries and pocket lamps
Technical Data
SKU 68438
Weight brut (kg or g) 0.010000
LED SIZE (mm) 3.45x3.45
LED Family Cree XP-G2
LED Application Spotlight, Downlight, High Bay, Par Lamp, Street Light, Flood Light
LED Installation Package 1x1 cm PCB
Color Warm White
Color Temperature 3000K
Color Rendering Index 90
Viewing Angle 115
Luminous Flux Typ (lm) 87
Forward Current Typ. 350ma
Forward Voltage Typ. 2.7
Power (W) 0.95
Forward Current Max 1000
Luminous Flux Max. 213
Power Consumption Max. 2.9
Product lifetime (h) 50000
Luminous Efficacy (lm per W) 92
Manufacturer Product Code 68438
Manufacturer Cree (USA)
Availability beyond shown stock: YES
Dimensions: Length (cm) 0.35
Dimensions: Width (mm) 0.35
