Cree XP-E2 royalblue 450nm Star PCB 2.5W

Cree XP-E2 royalblue 450nm Star PCB 2.5W

Cree XP-E2 royalblue 450nm Star PCB 2.5W
Cree XP-E2 royalblue 450nm Star PCB 2.5W Cree XP-E2 royalblue 450nm Star PCB 2.5W

Cree XP-E2 royalblue 450nm Star PCB 2.5W

$2.54
Stock >100 pcs
SKU
68182

With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron.  The PCB LED is great for small projects, rapid prototyping or custom builds.

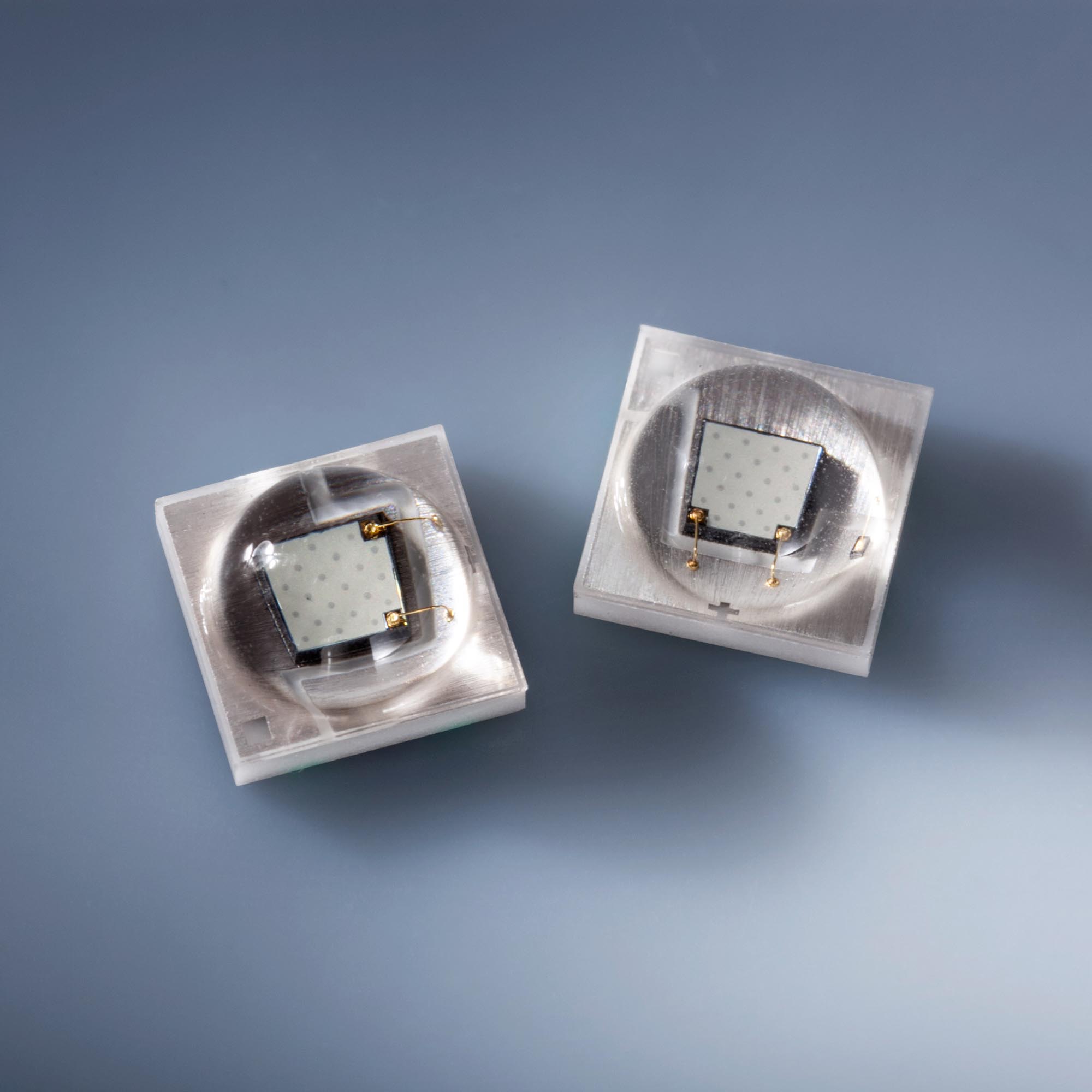

The XP series with its 3.45mm x 3.45mm base belongs to the new Micro High-Power LEDs. This type of LED package is increasingly established 'as standard' at all large manufacturers. By now Cree, Nichia and Osram are producing their High-Power LED forerunners in casing that are similar to the tenth of a millimetre. The chip placed in the centre and the square shape guarantee even heat dissipation and easy processing. The slim build size is reflow-capable and thus especially designed for mechanical assembly and soldering.

Equal size, greater lumen value

With the development of the XP-E2 Cree draws on its revolutionary SC³ Technology™. The LEDs achieve greater lumen value per Watt with the existing XP-E design and thus reduce the system costs. XP-E 2 LEDs use the same footprint as XP-E LEDs, are optically compatible and enable a seamless transition to more lumens and greater efficiency.

The XP-E2 can be used for a broad palette of applications with a high lumen value, whether indoors or outdoors, in portable devices or as a replacement for customary illuminations. The XLamp XP-E2 is a coloured LED and delivers up to 88 % more luminous efficacy than comparable coloured High-Power LEDs. Thus, illuminant manufacturers can cost-effectively develop a broad spectrum of applications, such as architecture, vehicle and display lighting.

  • Can carry max. current up to 100 mA
  • High efficiency
  • Reflow-capable / can be equipped with SMD
  • Long life expectancy
  • Small dimensions
  • Excellent price/lumen ratio
Technical Data
SKU 68182
Weight brut (g) 1.000000
LED SIZE (mm) 3.45x3.45
LED Family Cree XP-E2
LED Application Spotlight, Downlight, High Bay, Par Lamp, Street Light, Flood Light
LED Installation Package Star PCB
Color Blue
Viewing Angle 135°
Forward Current Typ. 350ma
Forward Voltage Typ (V) 3.1
Power (W) 1.09
Forward Current Max 1000
Power Consumption Max. 3.5
Product lifetime (h) 60000
Wavelenght 450
Manufacturer Product Code XPEBRY-L1-0000-00N01
Brand Cree (USA)
Availability beyond shown stock: YES
