Constant current supply 500mA 6 - 35 VDC Input

Constant current supply 500mA 6 - 35 VDC Input

Constant current supply 500mA 6 - 35 VDC Input
Constant current supply 500mA 6 - 35 VDC Input Constant current supply 500mA 6 - 35 VDC Input

Constant current supply 500mA 6 - 35 VDC Input

$21.86
Stock >100 pcs
SKU
95066

Constant current source for the operation of LEDs with a current of 100/200/350/500/600/700/1000/1400mA (depending on the version). Constant current sources are particularly suited for the safe and professional operation of one or several LEDs. Especially for cases when the input-voltage is not constant (in cars or alternating current), constant current sources offer a comfortable possibility to connect LEDs directly to this current source without hassle.

Technical data:

  • minimum input voltage: 6VDC
  • maximum input voltage: 35V DC/25 V AC
  • output current: 100/200/350/500/600/700/800/900/1000/1400mA
  • tolerance of output current: <2%

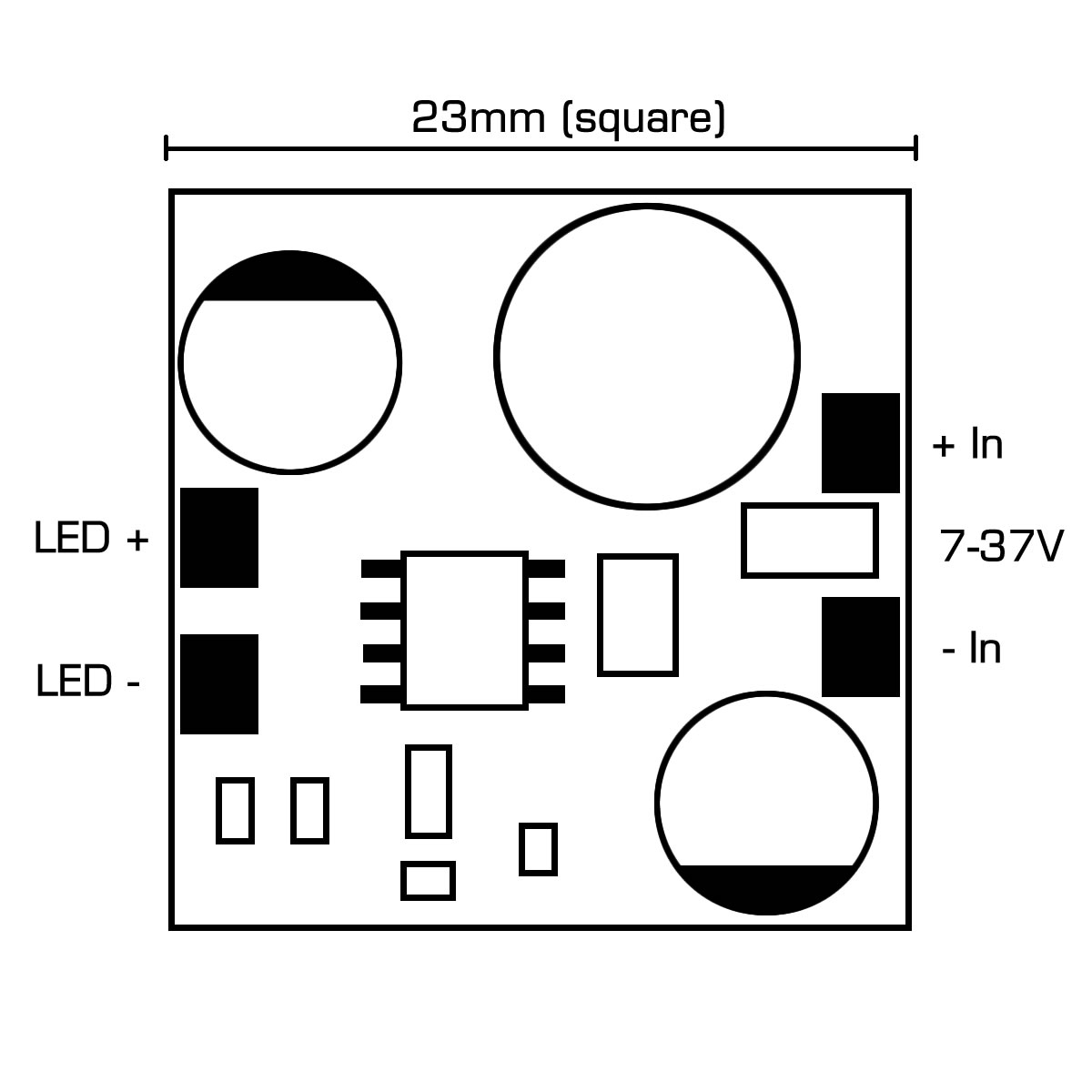

  • measures up to 1000mA: 23 x 23mm
  • measures 1400mA: 30 x 31.5 x 7mm
  • operating temperature: -40°C to 60°C
  • thermal protection: should the constant current source become too hot, it automatically regulates the current downwards.
  • polarised input
  • dimmable with product 95019

The module can power up to 10 high performance LEDs in white, blue or green or up to 16 high performance light emitting diodes in red, amber, orange, or yellow, depending on the input voltage. Depending on the load, a cooling element might be necessary. Recommended cooling element: 6001, the PCB can be easily installed with our thermal conductive adhesive.

Technical Data
SKU 95066
Weight brut (g) 20.000000
Output Current (Fixed) 500mA
Driver Voltage Range (V) 6 to 35
Dimensions 23x23x7
Brand Lumistrips
Manufacturer Product Code 95066
Product Family KSQ
Availability beyond shown stock: NO
Dimensions: Length (cm) 2.3
Dimensions: Width (mm) 23
Dimensions: Height (mm) 20
